BRIJG V1.5 Adapter

THE BRIJG
(info courtesy of BBI)
The BrijG is a coil bridge for boro tank devices. It allows the use of modern plug and play pod device coils in an A-Tank / j- Tank/Mums A Tank boro. No need to remove any BrijG parts when swapping coils. Just turn the tank upside down, pull the old coil out, and plug the new one in. Doesn’t get much easier.

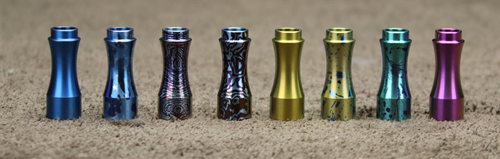

The BriJG consists of an implant-grade titanium chimney and PEEK base ring. To use the BrijG, simply install the chimney into the top hole of the tank, the Ultem ring in the bottom, and you can now install and replace coils without ever removing the glass.

Compatibility List:
This list is growing, but as of 11/4/2020, the following coils are compatible.

Voopoo Vinci:

• VM6 .15 mesh (60-80w)
• VM5 .2 mesh (40-60w)
• VM1 .3 mesh (32-40w)
• VM4 .3 mesh (32-40w)
• M1 .45 single coil (28-35w)
• VM3 .45 mesh (25-35w)
• TM1 .6 mesh (20-25w)
• *M2 .6 Single Coil (20-28w) *Must replace oring with larger oring found on all other PnP or GTX coils.
• R1 .8 dual coil (12-18w)
• TM2 .8 mesh (12-18w)
• R2 1.0 dual coil (10-15w)
• C1 1.2 ceramic (10-15w)
• TR1 1.2 (10-15w)
• PnP RBA

Vaporesso GTX:

• .2 mesh (45-60w; need very-minor modification to work)
• .3 mesh (32-45w)
• .6 mesh (20-30w)
• .8 mesh (12-20w)
• 1.2 regular (8-12w)
• 1.2 mesh (7-11w)
• GTX RBA

Omni Vape Universal:

• .3 mesh (32-40w)

Wotofo Manik Pod Coils

• D11 POD COIL. Single Netmesh Coil 0.2Ω woven net finished core. The D11 is a single netmesh pod coil. It is the best choice for vapers that love to vape with a rich and warm taste. Get D11 Pod Coil to enjoy a rich and warm taste.
• D13 POD COIL. Manik Pod A1 Nexmesh Coil 0.2Ω, the core technology of A1’s nexmesh steel mesh. Nexmesh coils are known for their quality and immense flavor and cloud production. With Manik Pod Mod, D13 Pod Coil is dedicated to bringing a delicate and sweet steel mesh taste.
• D14 POD COIL. A1 Conical Nexmesh Coil, Conical’s core technology. Again, considering the flavor, the conical nexmesh pod mod coil brings a warmer and thicker taste.
• D15 POD MESH COIL. Single Clapton Mesh Coil 0.2Ω, the combination of the new Clapton Mesh Coil.

Wismec WV Coil Series (not fully tested in all devices) but is compatible with GTX and PnP:

• 0.3ohm WV-M Mesh Coil – rated for 20-40W
• 0.8ohm WV01 Single Coil – rated for 12-20W

IMPORTANT: In order to use The BrijG, an A Tank/Hot Tank/j Tank/Mums A-Tank is necessary.
