Boxer DNA 100C Single 21700

A Mike Samios Project…

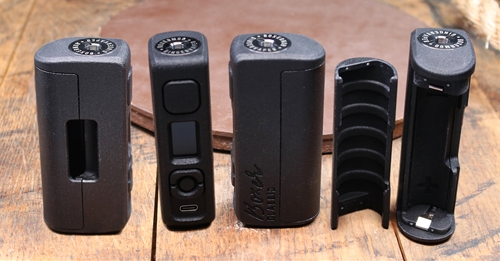

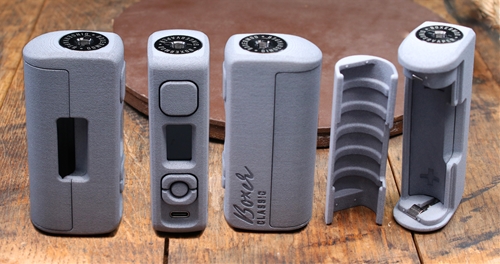

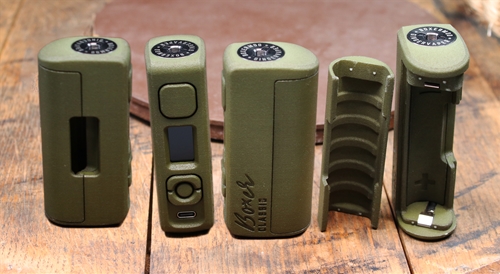

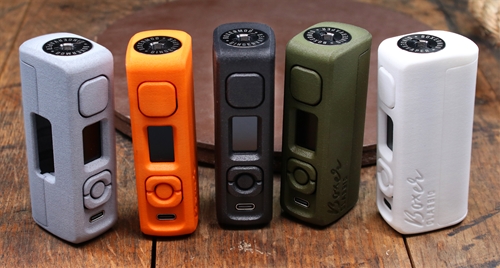

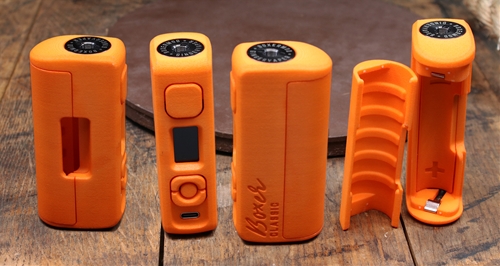

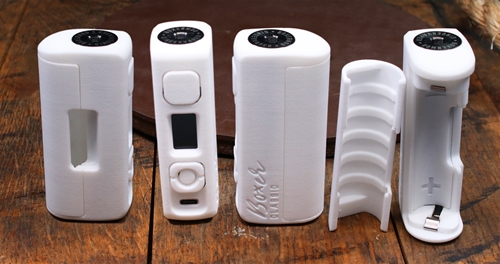

Boxer Classic DNA100C Single 2X700 with Evolv DNA100C  is designed specifically for professional and high-end users.  This device is powered by the Evolv DNA100C processor.  The Boxer is a small but extremely potent device, designed to provide a balance of both power and convenience.

Made of nylon plastic, the device is strong but yet light.  The DNA 100C is a power regulated digital switch-mode DC-DC converter. It features Evolv’s patented Wattage Control, Temperature Protection, Preheat, a full color TFT screen, Reverse Polarity Protection, an onboard programmable multicolor LED, waterproof onboard buttons and a real-time clock. Evolv’s EScribe software and Theme Designer software can be used to fully customize all aspects of the interface and monitor the user experience. The DNA 100C features battery monitoring and an integrated 3A USB-C charger. It is the most advanced personal unit controller ever made.

Features:

• Powered by the Evolv DNA100C Color Chipset
• Single battery 100W regulated based on 1 x 20700 or 1 x 21700 (sold separately)
• Output Power 1W – 100W
• Output Voltage: 0.2V – 9.0V
• 200°F-600°F
• Modes: Locked, Stealth, Power Locked, Resistance Lock, Max Temperature Adjust
• 8 User Profiles
• 3A USB-C Charging
• Onboard reverse voltage protection
• Escribe Software for Custom Personalization and Theme Designer for custom GUI.
• Nylon Body
• Ergonomic design with unique Boxer style 3 button navigation
• Upgradable software/chip
• OLED 18mm x 66mm Screen
• Boxer Black 510
• Dimensions:  95mm (H) x 45.4mm (D) x 28.3mm (W)

Contents:

• Boxer Classic DNA100C  Fully Assembled w/ 6-month warranty
• Boxer Band
• Boxer Felt Draw-String Pouch
• USB-C Cable
• User Manual
